When multiple XML files have the same structure, it is possible to process them all at the same time seamlessly.

Prerequisites:
  • Stambia DI Designer S18.3.0 or higher
  • Stambia DI Runtime S17.4.0 or higher



Metadata Configuration

To do this:

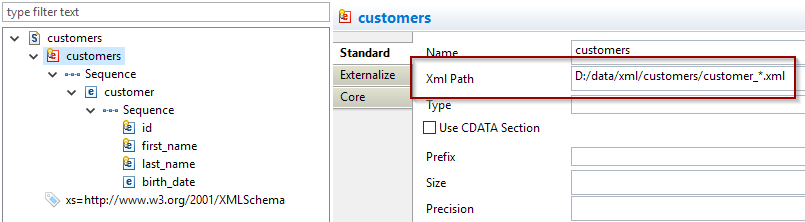

  1. Open the Metadata
  2. Use a mask in the Xml Path parameter



metadata



The following masks are allowed:

Mask Description
* matches zero or more characters
? matches one character
** matches zero or more directories
| Concatenation with another mask
exclude:: File(s) to exclude



Example of xml path:

File Path Example Description Valid Files Examples
D:/folder/customer*.xml All the files that begin with customer and end with .xml are loaded.

D:/folder/customer.xml

D:/folder/customer1.xml

D:/folder/customer_GIBBS.xml

D:/folder/customer?.xml All the files that begin with customer, followed by one character, and ended with .xml are loaded

D:/folder/customer1.xml

D:/folder/customer2.xml

D:/folder/**/customer.xml All the files named customer.xml that are located in the D:/folder/ folder or its sub-folders are loaded.

D:/folder/customer.xml

D:/folder/sub/customer.xml
D:/folder/customer.xml|D:/folder/customer2.xml The two files specified are loaded.

D:/folder/customer.xml

D:/folder/customer2.xml

D:/folder/customer*.xml|exclude::D:/folder/customer2.xml All the files that begin with customer and ends with .xml are loaded, except the customer2.xml file

D:/folder/customer.xml

D:/folder/customer1.xml

D:/folder/customer_GIBBS.xml



This feature only applies for reading XML files.

Make sure to not use these masks when writing XML files, as it will produce an error.

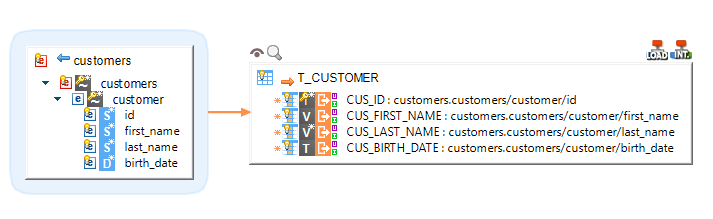

XML Metadata can then be used as a source in a Mapping as any other XML Metadata, except that instead of loading one file it will load all the files matching specified mask.



mapping



For the loading to work properly, make sure that source files are all structured the same, as defined in Metadata.
